40 T DUTY CYLE CRANE WITH DRAGLINE

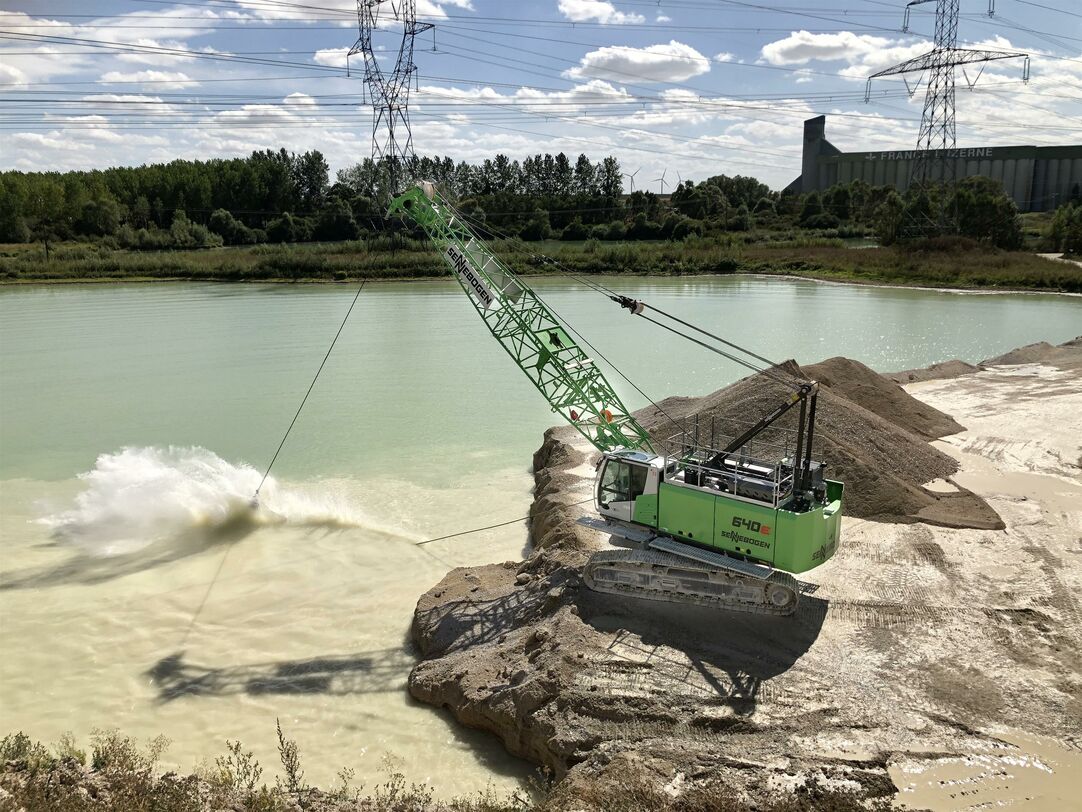

Close to its headquarters in Vallant-Saint-Georges, ADAM Frères has an operating licence for a 17-hectare site. The company’s own facilities are capable of processing the extracted material and can therefore offer a wide range of products such as sand and gravel. The special feature of this site is that it is partly located under a network of high-voltage power lines. It was therefore necessary to ensure efficient extraction with a compact and versatile machine.

Managing Director Marc-Antoine Adam chose the SENNEBOGEN 640 E duty cyle crane, sponsored by the Grand Est region. Equipped with powerful 160 kN free-fall winches and its 186 kW motor, the machine is ideally designed for dragline shovel operations. Close to power lines, the boom measures 13.1 m in a compact configuration and is therefore perfectly adapted to the conveying depths to be reached. As soon as a larger working area is available at the beginning of 2021, the boom length will be increased to 15.9 m.

Thanks to its robust design, the SENNEBOGEN 40 tonner is not only suitable for use with a dragline bucket up to 2.3 m³, but also for operation with a leader, rope grab or hydraulic piping machines and drilling grabs up to DN 2000. With its multi-circuit hydraulic system and powerful rotary drive, the duty cyle crane can be used multifunctionally without restrictions. Because of its telescopic crawler track system it has a safe and stable strand on 700 mm 3-grouser base plates.
