Seven Liebherr Cranes Squeeze into a Swiss Valley for N16 Bridge Replacement

A construction site with no elbow room

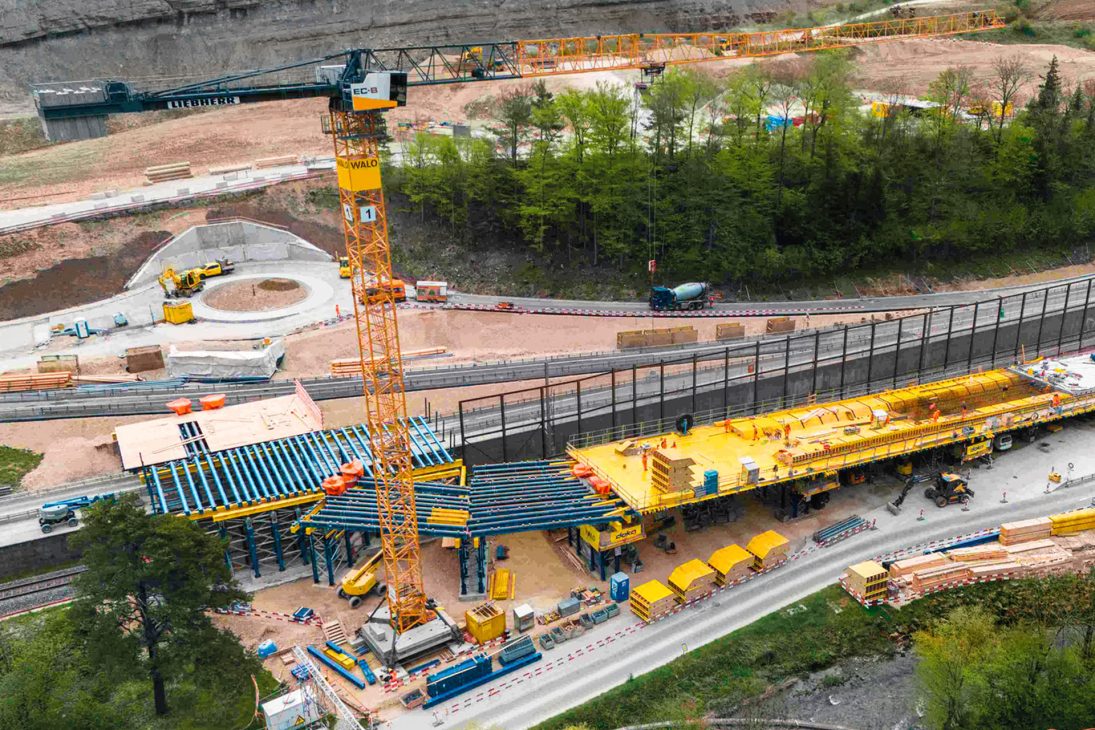

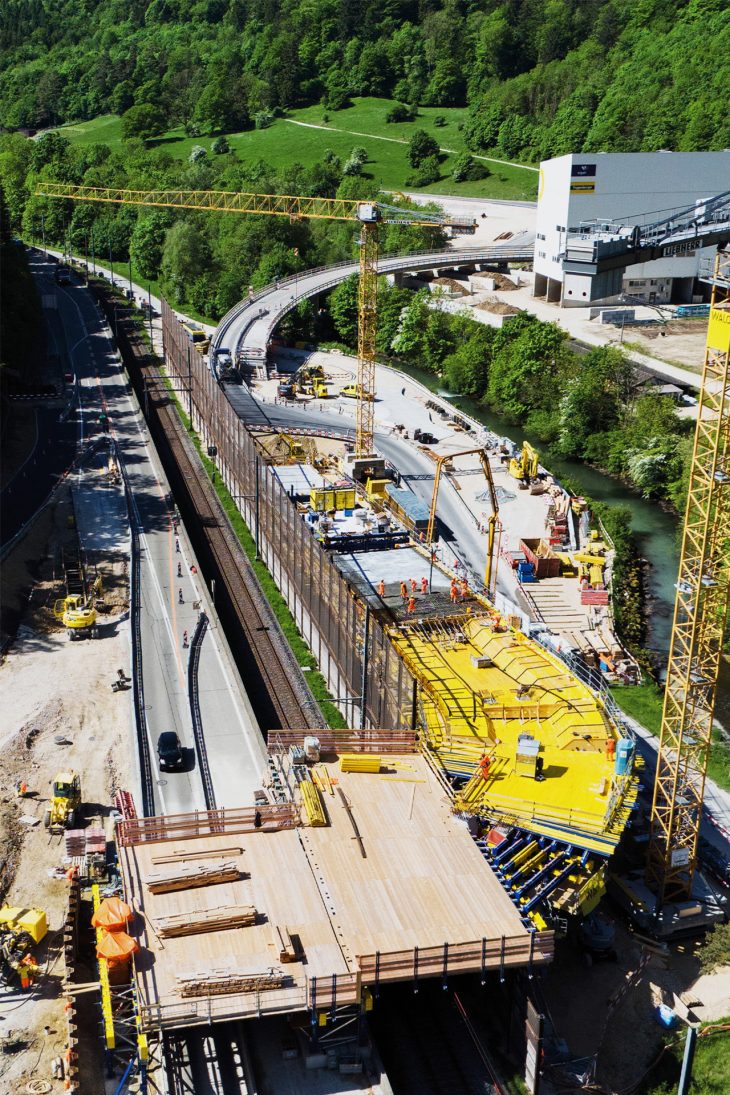

The N16 — the Transjurane — connects the canton of Jura with the Swiss Mittelland. On behalf of the Federal Roads Office, Walo Bertschinger is replacing one bridge and building another between Tavannes and Biel. The narrow valley location limits lorry deliveries to a handful per day, so every lift has to be planned to the centimetre. Two existing bridges sit immediately next to the site, and work has been under way since July 2024, with completion due in December 2026.

Cranes across the phases

For the first bridge (D19), a 270 EC-B 12, a 90 EC-B 6 and a 65 K self-erecting crane worked from 2024 to 2025, with an L1-32 on the D333 span. For the second bridge (D19A), the 270 EC-B 12 and 90 EC-B 6 return through 2026, joined by an 81 K self-erector. The cranes carry the full logistics load for the in-situ concrete construction: steel girders for the falsework, timber formwork, reinforcement and assembly structures.

22 metres of falsework, no support

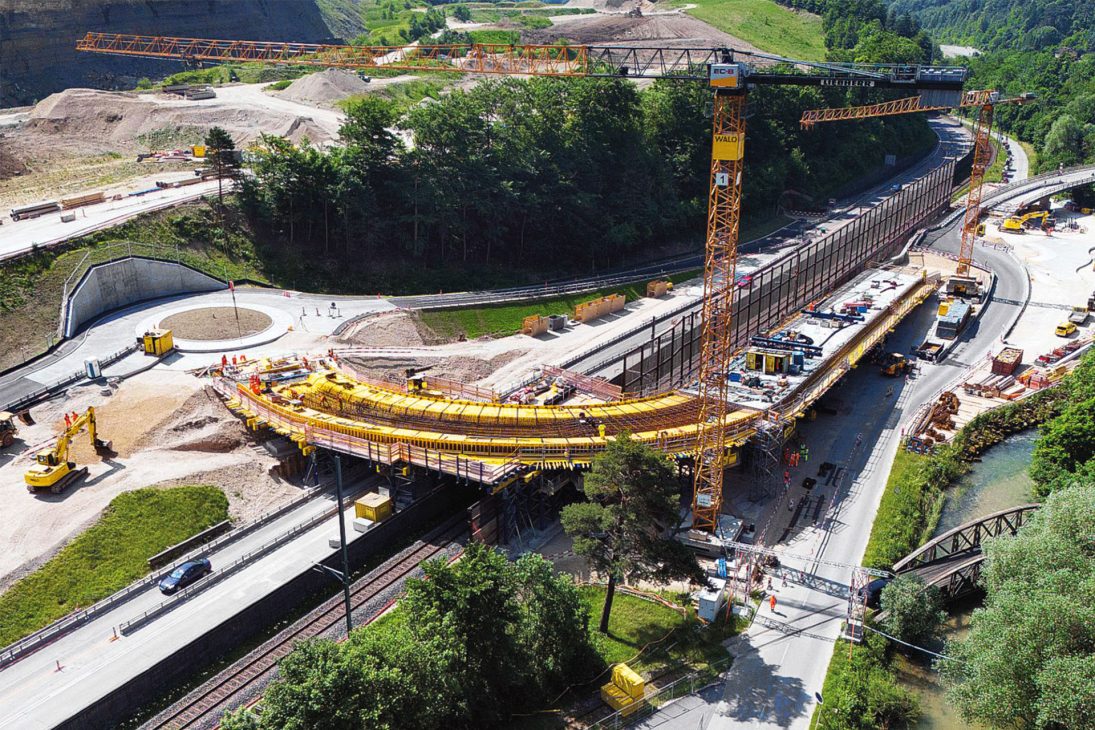

The trickiest job was erecting the falsework — the temporary steel structure carrying the bridge deck while the concrete cures — across a 22-metre span without any intermediate support. All of it happened next to a live railway line and the open motorway, with crane reach and working methods adapted to SBB Rail’s safety requirements and parts of the work squeezed into night and weekend closures.
