Southern Cranes uses Hoeflon C10 on confined indoor lift

Access decided the machine

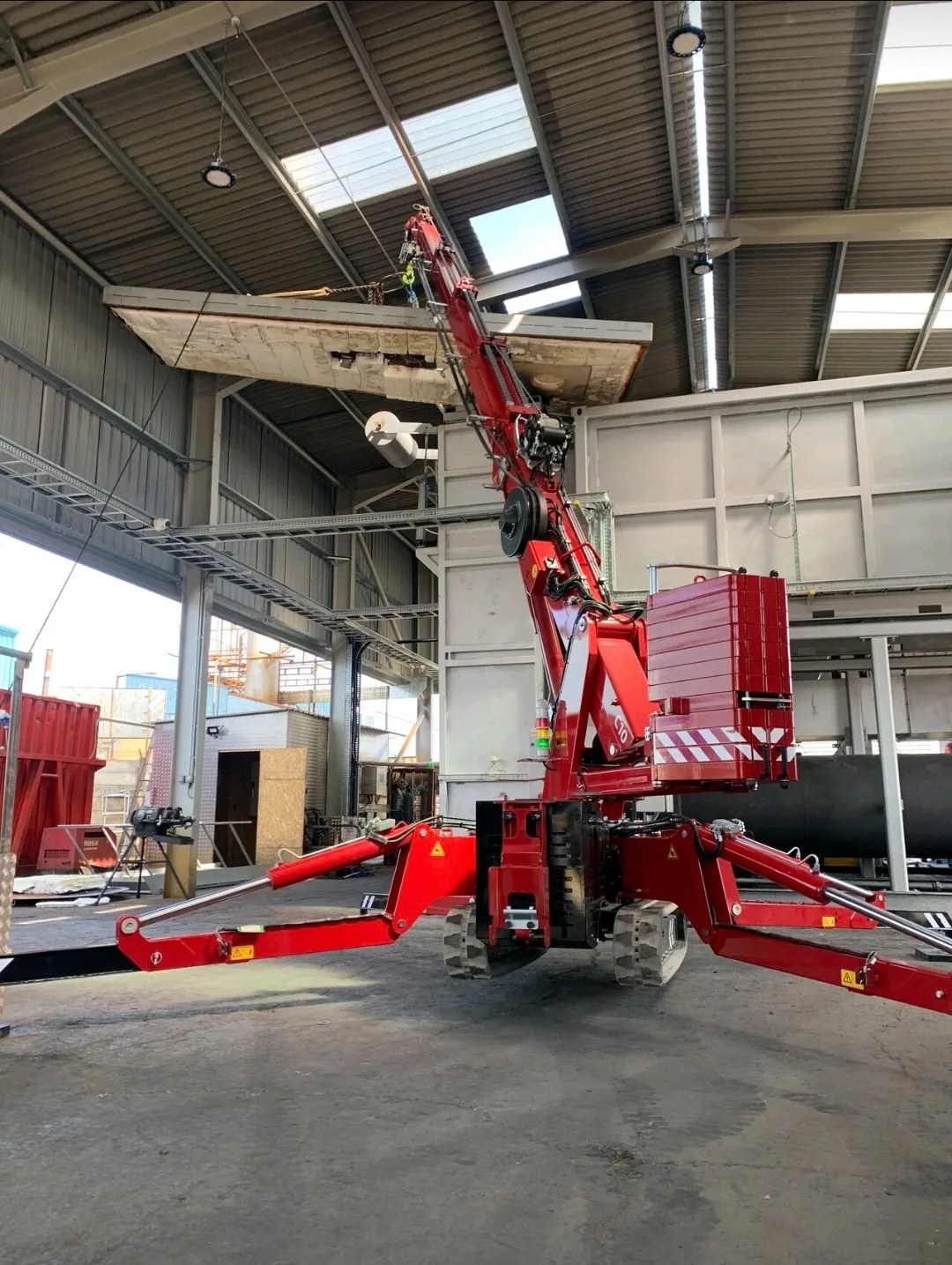

The job was a straightforward indoor lift on paper, but the working area left almost no room to move plant around. Southern Cranes chose the Hoeflon C10, a compact crawler crane that travels at a width of just 800 mm — narrow enough to pass through standard doorways and internal circulation routes — and then sets up on outriggers once it is in position.

That combination of a slim travel envelope and a rated capacity of 4,000 kg is the reason machines of this class have taken over work that used to require either a much larger crane brought in through a demolished opening, or a slow chain-block and skate operation.

Stability under load indoors

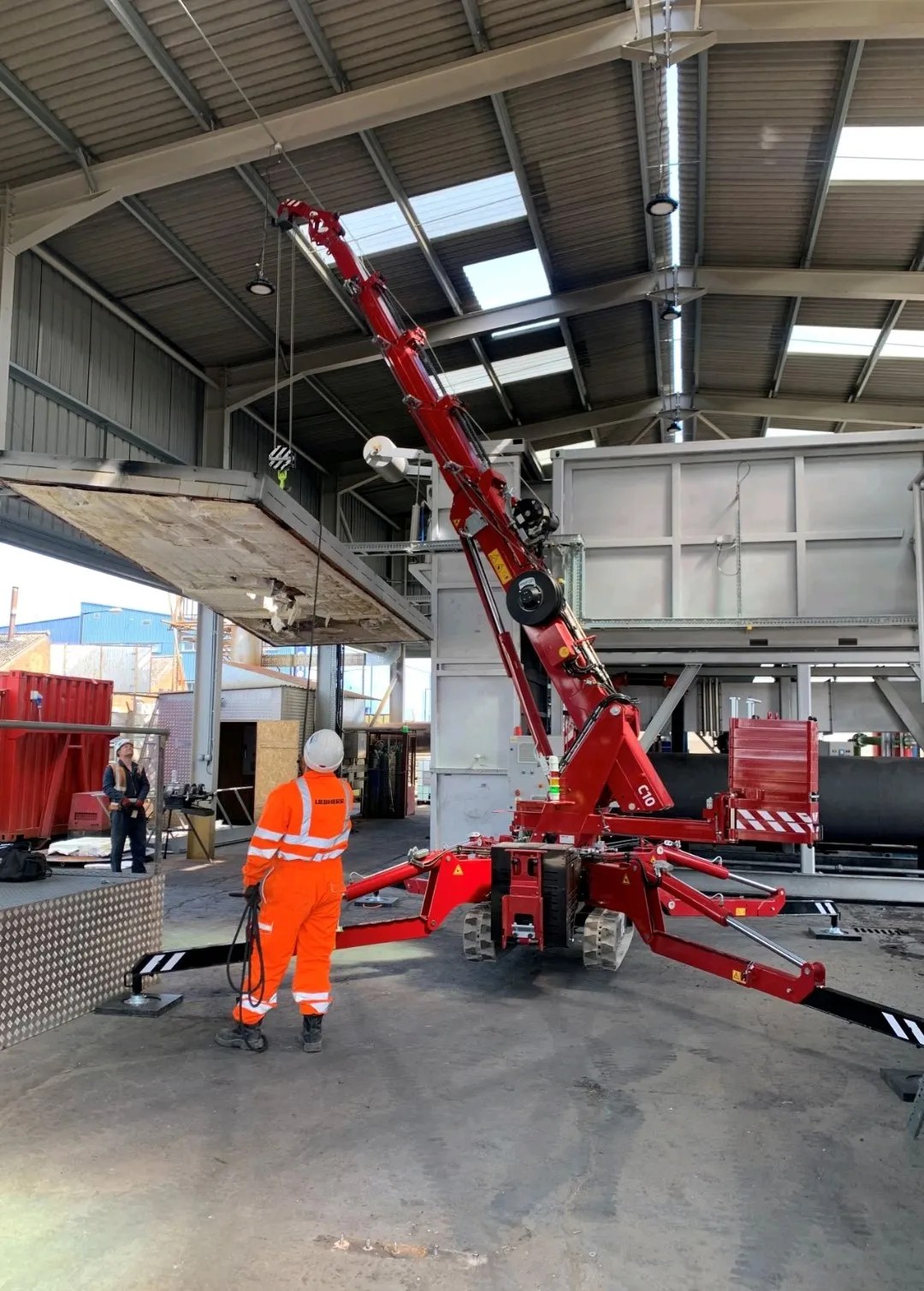

Working inside puts a premium on control rather than raw reach. The crane has to be set down on a floor of known capacity, spread its loads through the outrigger pads and then move the load in small, repeatable increments. Southern Cranes reports that the C10 held position well under load and that the proportional controls allowed the team to place the load without repeated corrections.

Being able to site the crane exactly where the lift had to happen — rather than working at long radius from the only spot a bigger machine could reach — also kept the load chart comfortable and shortened the operation.

Where compact cranes now fit

Jobs like this one are increasingly the everyday work of the compact crane sector: installation and assembly tasks inside occupied or partly finished buildings, in factories and in plant rooms. The equipment is no longer a niche alternative to a mobile crane so much as the default answer where access, floor loading or emissions rule a truck-mounted machine out.

For Southern Cranes, the appeal is fleet flexibility. A machine that fits on a trailer, drives itself into position and still offers four tonnes of capacity can be re-hired across a wide spread of sectors without needing specialist transport for every move.

Hoeflon positions the C10 for industrial installation work, heavy steel assembly and factory environments, and the manufacturer notes that jobs of this kind — where the crane runs under load for long periods in a space that offers no room for error — are where the model has built most of its following among lifting contractors.

Source: Hoeflon — Photos: Hoeflon
